Bridge script.


Bridge script is statically typed, platform independent programming language. It’s syntactically similar to C language. Bridge script does not have any built-in APIs in the interpreter. It provides mechanism to invoke external function by describing types and functions to invoke. Bridge script syntax derived from C with simplicity in mind and built-in memory management. If you interested to get your hands on Bridge script interpreter contact me, otherwise you can play with it using Bridge script debugger.


Syntax.

Since Bridge script syntax is similar to C syntax I am not going to repeat it here (for entertainment check wiki: C syntax)

Types relationship:


All basic Bridge script types have one to one mapping to C types.

Bridge scriptCSize
bool
char
1 byte
i8
char
1 byte
ui8
unsigned char
1 byte
i16
short int
2 bytes
ui16
unsigned short int
2 bytes
i32
long int
4 bytes
ui32
unsigned long int
4 bytes
i64
long long int
8 bytes
ui64
unsigned long long int
8 bytes
float
float
4 bytes
double
double
8 bytes

For constant integer values HEX and Binary formats are provided.
HEX prefixes: 0X, 0x

i32 v0 = 0xABCD1234 v1 = 0Xaaaa1111;
HEX postfixes: H, h
ui8 v0 = A1H v1 = abh;
Binary postfixes: B, b
ui8 v0 = 001101B v1 = 101b;

float and double formats are the same as in C.

double d0 = -.25e-3, d1 = 0.002E-22;
float f0 = 1.5, f1 = 1.0E+3;


There is one built-in type which does not have corresponding C type – string type.

string str =  “This is a string”;

Structre type:


struct - this keyword is used to declare structure difinition.

struct MyStruct {
    ui32 v0;
    struct _SubStruct {
    bool _v0;
    i64 _v1;
    } v1;
    _SubStruct v2;
} var0;
MyStruct var1;

Arrays:


Arrays declarations (where Type is any Bridge script type except array):

array<Type> - declares array without size.
array<Type, dim> - declares array of size dim.
array<Type, dim0, dim1> - declares 2-dimensional array.
Array can be declared with any number of dimensions. Dimension of array can be an expression evaluated at run time, in this case only one-dimensional array is allowed. Expression based dimension allows dynamically allocate array at run-time.

function array<ui8>@ AllocateArray(ui32 size) {
    array<ui8, size> arr;
    return arr;
}
function array<ui8> arr0 = AllocateArray(10);
function array<ui8> arr1 = AllocateArray(20);

array<ui32, 10> arr;
array<ui32, 2, 2> arr2;
arr2[0, 0] = 0;
arr2[0, 1] = 1;
arr2[1, 0] = 2;
arr2[1, 1] = 3;
arr[1] = arr2[0, 1];

Dynamic dimension as expression:

array<i16, 2 * foo(n)> arr;

string variable can be assigned to array variable of type i8 or ui8 and vice versa, array must be static with at least one dimension.

array<ui8,  5> arr0;
string str = "Test";
arr0 = str;
array<ui8,  4> arr1;
arr1[0] = 0x41;
arr1[1] = 0x42;
arr1[2] = 0x43;
str = arr1;

Functions:


Function definition syntax:

function Type FooName([arguments if any]) { return value; }

Where Type is function return type, function can have any number of arguments and return statement is optional.

function ui32 GetSum(ui32 a0, ui32 a1) {
    return a0 + a1;
}

Function variable declaration:

function<GetSum> fn;
array<function<GetSum>, 4> fnArr;
function<GetSum> fn0 = fn;

Declared function variable is set to function definition instance by default.
Any function can be called implicitly:


References:


All variables in the script are references (also see Special operators), however, to pass by reference you must use reference operator.

function ui32@ GetSum(ui32@ a0, ui32@ a1) {
    return a0 + a1;
}

Passing a variable by double reference allows to overwrite variable’s reference.

function bool GetRef(ui32@@ a0) {
    ui32 _var = 100;
    a @= _var; // reference assignment operator
    return true
}
ui32 var = 10
GetRef(var); // this function call will overwrite var reference by reference to _var

Another way to pass a reference by reference is to declare an array of reference type of size 1 and pass it by reference.

struct ST {
    array<ui32@, 4>@ arr;
    ui64 v64;
};
array<ST@, 1> refSt;
refSt[0].v64 = 0x0000000087654321;
function ui32 GetRef(array<ST@, 1> @ref) {
    ST st;
    st.v64 = 0x1234567800000000;
    ui32 i = 0;
    for (; i < sizeof(st.arr) / sizeof(i); ++i) {
        st.arr[i] = (i + 1) * 10;
    }
    ref[0] @= st;
    return 0;
}
GetRef(refSt);

Bridge script and C function types relationship:


Bridge scriptC
function i32@ Foo(i32 arg) {}

long int* Foo(long int arg){ return NULL;}
typedef long int* (*Foo_Type)(long int);
Function variable declaration:
Function variable declaration:
function<Foo> fn;
Foo_Type fn = Foo;
Function invocation:
Function invocation:
i32 var @= fn(10);
i32 *p = fn(10);

Library type:


Library type allows dynamic linking with external library. If external function return type is void then use ui32 as return type for library function desciption. To describe library function arguments only types of arguments are allowed.

Either library name or library path is allowed.
lib (“kernel32.dll”) {
    ui32 GetModuleHandleA(array<ui8>@); // HMODULE GetModuleHandleA(LPCSTR lpModuleName);
} kernel;
array<ui8> moduleName @= str2arr(“user32.dll”);
ui32 handle = kernel.GetModuleHandleA(moduleName);

Built-in functions:


array<ui8@> str2arr(string@) - this function converts script’s string to array of bytes.
array<ui16@> str2warr(string@) - this function converts script’s string to array of words (as Unicode).
string@ arr2str(array<ui8@>) - this function converts array of bytes to string.
string@ warr2str(array<ui16@>) - this function converts array of words (as unicode) to string.


Operators:


These operators have the same functionality as in C.
Arithmetic operators:
+, ++, +=, -, --, -=, *, *=, /, /=, %, %=, =

Logical operators:
||, &&, !

Bitwise operators:
&, |, ~, ^, ^=,>>, <<

Comparison operators:
==, !=, <, <=, >, >=


Special operators:


@= - this is reference assignment operator.

ui32 v0 = 10
ui32 v1 @= v0; // now both variables point to the same memory

@ - this operator is used to pass/return a variable to/from a function and declaring structure member variables.

function ui32@ Get(ui32 a0, ui32@a1, ui32@@ a2) {
    a2 @= a1;
    return a0;
}
struct A {
    ui32@ v32;
    i8@   v0, v1, v2;
};

lock() - this operator locks memory which variable is referenced to. This operator should be used when you are passing local variable to asynchronous C function and caller goes out of scope. For example calling CreateThread() and passing local data as a parameter to the thread releases local variable when caller goes out of scope, hence you need to lock it and then unlock it in the thread.
unlock() - this operator unlocks memory locked by lock().

function ui32 Callback(array<ui8>@ a) {
    return a[0];
}
struct MyData {
    ui32 v0;
    function<Callback> fn;
    array<ui8, 4> v1;
};
function ui32 ThreadFoo(MyData@ arg) {
    unlock(arg);
    return arg.fn(arg.v1);
}
struct SECURITY_ATTRIBUTES {
    ui32   nLength;
    ui32   lpSecurityDescriptor;
    bool   bInheritHandle;
};
lib(“kernel32.dll”) {
    ui32 CreateThread(SECURITY_ATTRIBUTES@, ui32, function<ThreadFoo>, MyData@, ui32, ui32@);
    ui32 WaitForMultipleObjects(ui32, array<ui32>@, ui32, ui32);
    ui32 CloseHandle(ui32);
} kernel;
SECURITY_ATTRIBUTES sa;
MyData data;
ui32 threadId;
data.v1[0] = 10;
array<ui32, 1> handle;
handle[0] = kernel.CreateThread(sa, 0, ThreadFoo, lock(data), 0, threadId);
kernel.WaitForMultipleObjects(1, handle, true, -1);
kernel.CloseHandle(handle[0]);

sizeof() – this operator returns size of memory allocated for that variable, it’s useful to get size of struct and arrays, if array is allocated externally this operator will return 0.
cast<Type>() – this is typecast operator. This is very powerful operator and it breaks memory constrains once you typecast a variable static type paradigm is broken.

struct A {
    ui32 v0;
    ui32 v1;
} a;
a.v0 = 10;
a.v1 = 20;
ui64 v @= cast<ui64>(a);
array<ui8, 4> arr1dim;
array<ui8, 2, 2> arr2dim;
ui32 i = 0;
for(; i < 4; ++i) {
    arr1dim[i] = 1;
}
struct Typecasted {
    ui8 v0, v1, v2, v3;
} tc;
tc @= cast<Typecasted>(arr1dim); // now both variable point to the same memory
arr2dim = arr1dim; // copy by value
array<ui8> arrNodim @= arr1dim; // now arrNodim pointes to the same memory

Statements:


if, else, for, while, break, continue, switch, case, return – these statements have the same meaning as in C.
include statement:

include “script_to_inlcude.bridge”;

include statement path is relative to the current script.


Bridge script references and C Pointers relationship:


Reference operator has the same meaning as a pointer in C, it’s used to declare member variable of a structure.

Bridge script C
struct A {
    i8@ v0, v1;
};
struct B {
   A@ v0;
};
struct C {
    array<i8@>@ v0;
};
struct A {
    char *v0, *v1;
};
struct  B {
    A *v0;
};
struct C {
    char **v0;
};

Run-time error handling:


If a run-time error occurs an error object is thrown, to catch it use “error” statement - error(e){}
Error object data members:
name – name of the error, type is string.
line – line number where error occurred, type is ui32.
position – first character position of the symbol, type is ui32.
file – file path, type is string.
trace – stack trace, type is string (new line separated strings).
symbol – symbol name, type is string.

function i8 f0() {
    ui32 v0 = 100, v1 = 0;
    v0 = v0 / v1;
}
function i8 f1() {
    f0();
}
f1();
error (e) {
    string err = e.name;
    string trace = e.trace;
}

Bridge script examples:


GitHub repositories



Visual debugger


Bridge script interpreter provides debugging facilities through debugging API. I created Bridge debugger for Microsoft Windows(c) platform. It exposes all standard debugging features using GUI. Bridge debugger has built-in interpreter and provides such features as:

Compiled Bridge script can be debugged without decompiling it.

Download
File: BridgeDebugger.zip
Version: 1.0.43794.26851
Build Date: 11/25/2019 12:53:19 PM
Release Type: Beta
Platform: Windows

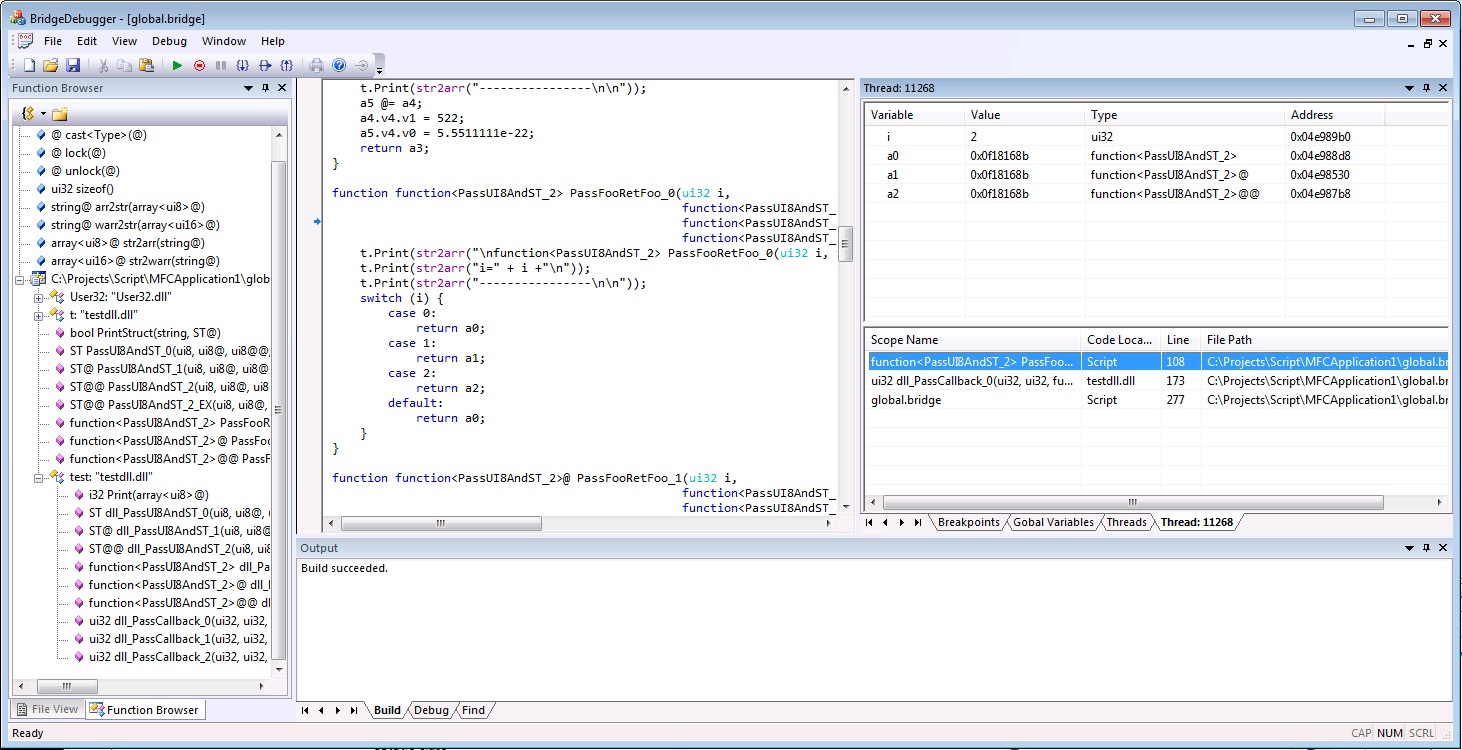

Debugger GUI


In order to run a script you must set start up script using pop up file menu, Compile/Decompile menu items available as well. To execute debugger actions: run, step over, step in, step out, pause and stop you can use toolbar, application menu or keyboard shortcuts. Following views are clickable: Function Browser, Build, Debug, Breakpoints, Threads, and Stack view of Thread tab.

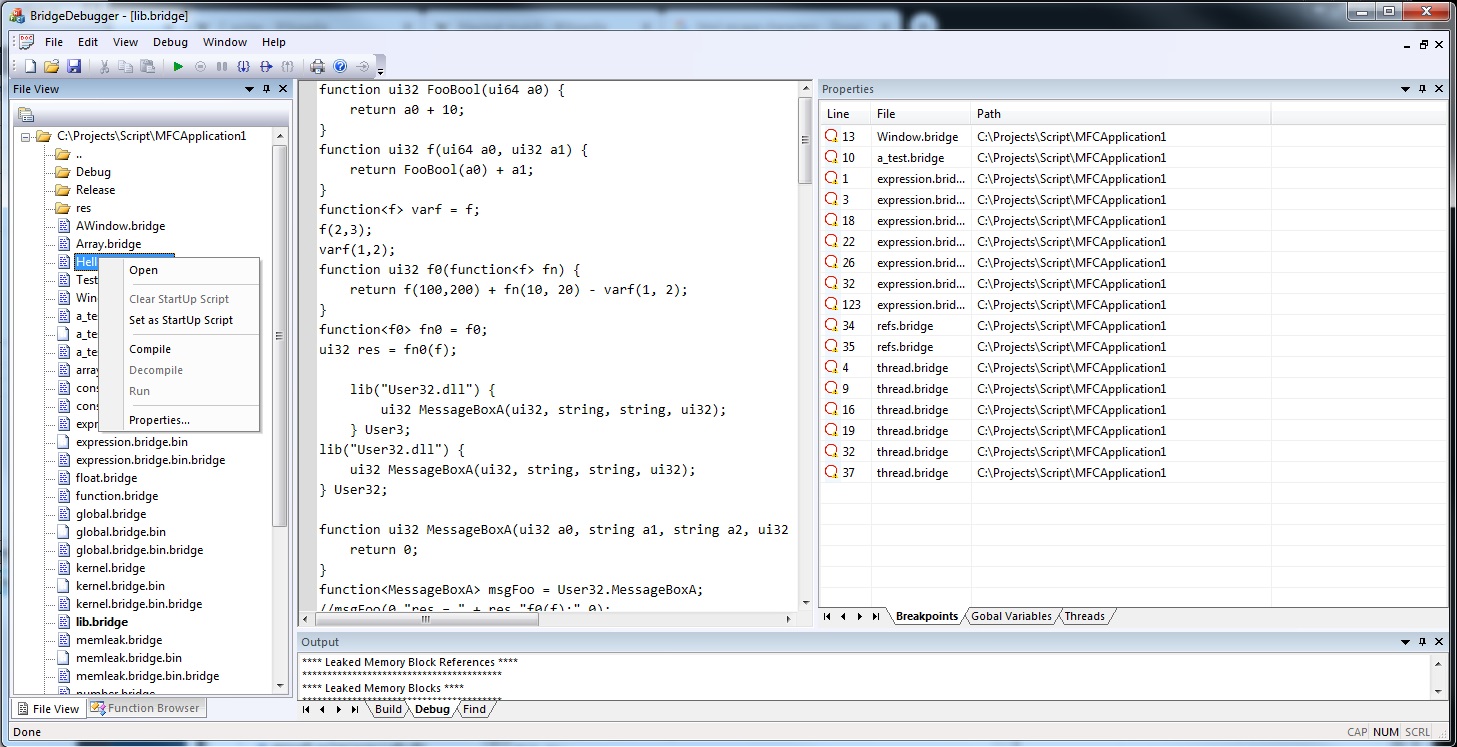

File menu:

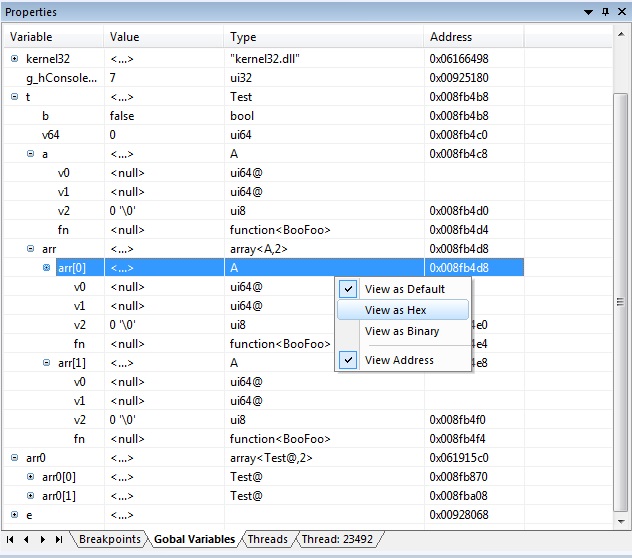

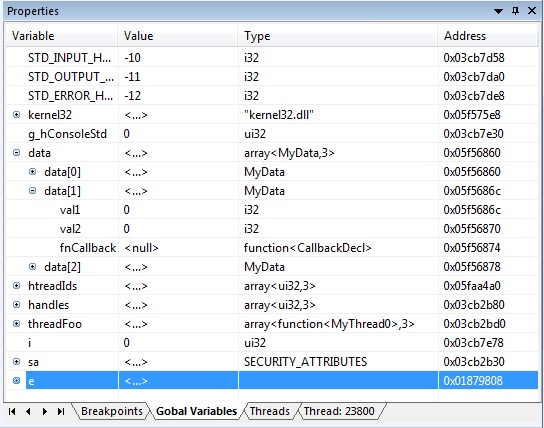

Global variables view:

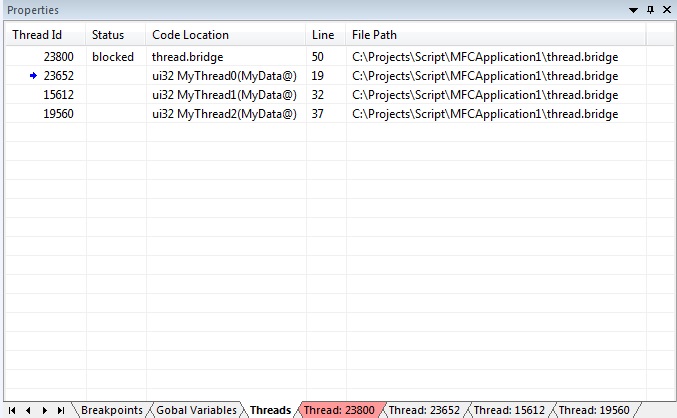

Thread view:

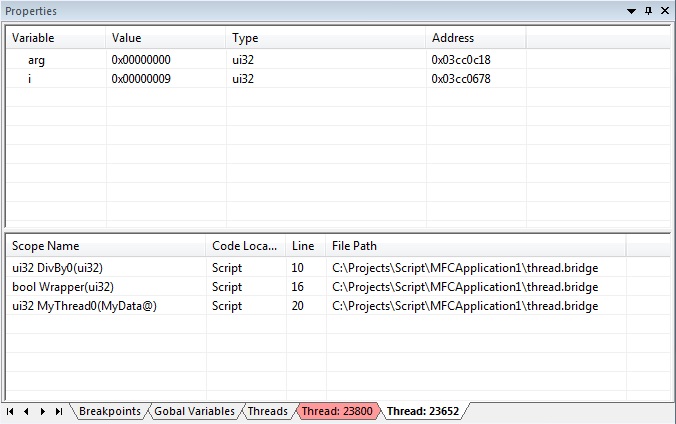

Stack view:
